Stranded: The Rover Game

Objectives

Use object-oriented design and 2D arrays (Phase 1 & 2)
Implement and use a List ADT as linked nodes (Phase 3)
Implement and use a Stack ADT as linked nodes (Phase 4)
Implement and use a Queue ADT as a circular array (Phase 5)
Do a Big-O analysis on an ADT (the Queue) implementation (Phase 5)

The Story

The year is 2022. Personal space transport is common and you have taken your space ship out exploring. You find an ancient abandoned planet and decided to land and investigate. There was a huge storm as you landed and your ship now lies in pieces on a landing pad. There is no oxygen in air but you are able to move around in your rover. You have a repair manual, which tells you how to fix your ship, but you don't have the needed spare parts.

You see strange items scattered around on the ground. Maybe they will be useful. You also see strange glowing orbs big enough to swallow your rover. When you touch one, you get sucked in and appear in another place with items and orbs. The orb was a portal! When you re-enter the same portal, it takes you back where you came from.

Your goal is to move about the portal system and collect enough spare parts to fix your ship.

Other Phases

Phase 2 | Phase 3 | Phase 4 | Phase 5 |

Getting Started with the Code

First, copy the code from the following directory: ~csci204/2020-fall/student/projects/p2Dancy/
We have provided an executable prototype of the game. You should see the following set of files in your project folder:

Game.py the file you need to edit. Contains the framework for the game. Also contains code that communicates with the GUI (Graphical User Interface)
gameboard.py and graphics.py contains the remainder of the GUI code. You should not have to edit these files and unless otherwise noted, you should not edit these files.
.ppm files that provide the image files for the game

The Point class

The GUI makes use of a Point class - a basic data structure that simply holds an x and y attribute. This class is used in the get_rover_location() and get_image() methods.

class Point:
  def __init__(self, x, y):
    self.x = x
    self.y = y

Existing Functions (Game.py):

go_up, go_down, go_left, and go_right methods. When the arrow buttons are pushed in the user interface, these methods are automatically called. Your Rover should move one space in the direction specified.
Look carefully at the implementation of get_image in Game.py. It accepts a Point as the input, which (as we showed earlier) contains Point.x and Point.y.
- Whenever the game starts or someone hits a button, the game will automatically call the get_image function for every single coordinate point in the room. Now, we are operating in two dimensions, and instead of returning an object, we are directly returning the image name.
- The role of the function is to return the name of the image at Point.x and Point.y. For example, if a portal is at point x and y, return "portal.ppm".
- Note that there are different functions to get your Rover's image and coordinates. You should never return "rover.ppm" here.
- Currently, the function returns a random image (no matter the input) so that the interface works. This is why all the images jump around on the screen. You should delete this code.
get_rover_location: this function should return the current position of your rover - expressed as a Point object

There are a lot more methods that you'll eventually need to complete as we progress through the game development.

Phase 1: Rover Movement

The goal of part 1 is to focus on your class design and to build movement into the system.

Overview

The initial room must appear with all its contents correctly generated
The rover must be able to walk around the room in response to pressing the arrow buttons
The portals do not have to go anywhere yet. The Tasks, Inventory, and rest of the buttons do not have to work.

Configuration Details

The rover must start at a random location in the room.
- When the rover moves, it can be on top of other items in the room.
- You'll have to consider what should happen when the rover is near a wall. Should it stop? Should it wrap around to the other side? This is up to you.
The ship must have at least 3 different kinds of ship components and at least 6 ship components in total.
- The ship components should be roughly in the middle of the room and must be adjacent (touching each other). You can hardcode where in the room they are by putting the exactly coordinates in the code.
- At least 4 of the ship components must be broken (use the images we provide).
- To figure out what the possible ship-components are, see the image files provided.
There will be a random assortment of parts (gears, screws, cake, etc.) scattered around the room. There must be at least 4 different kinds of parts.
- Use randomness for both the number and location of the parts

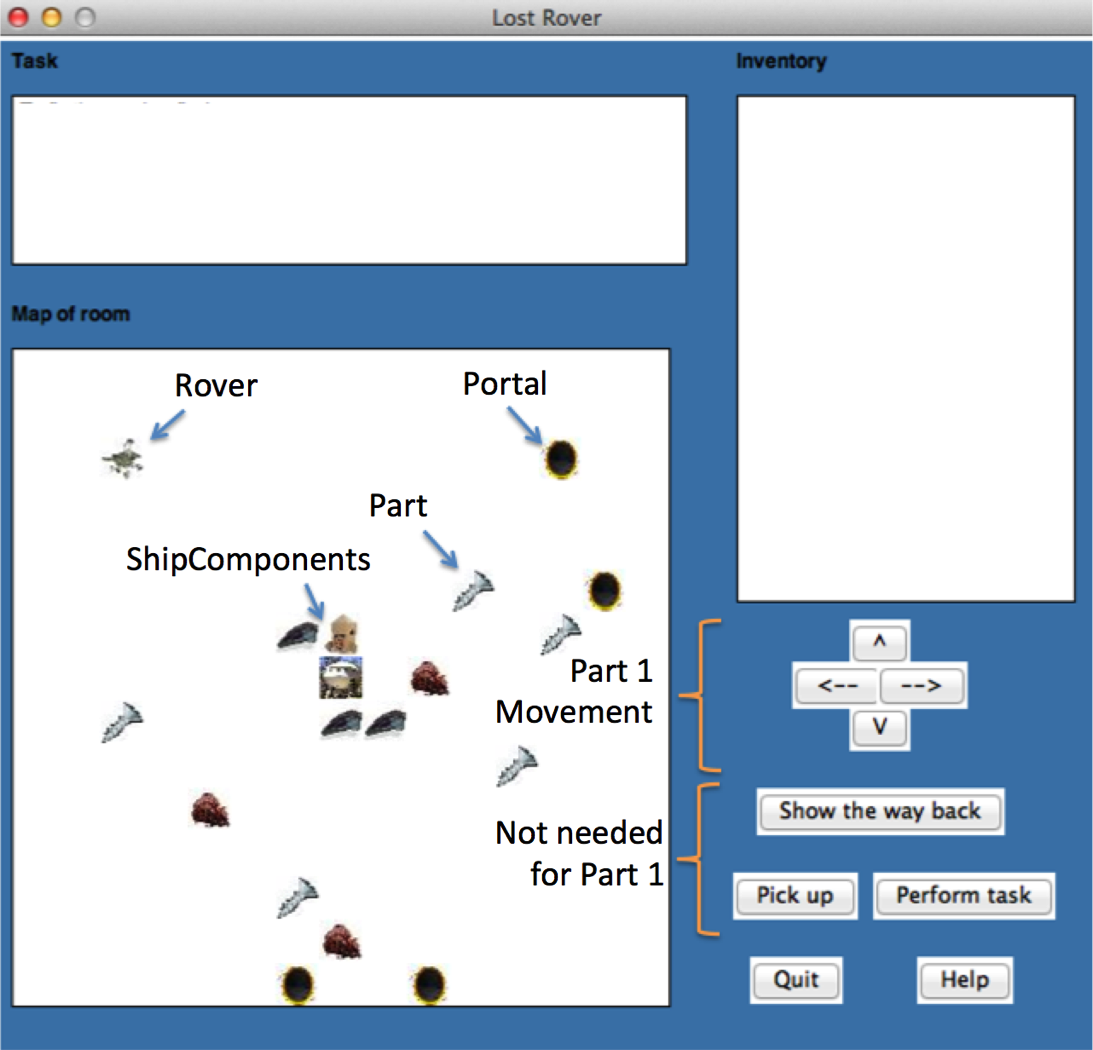

- The total number of parts in the room should be roughly similar to the picture above. While there is quite a bit of flexibility, your room shouldn't be packed full of objects.
There will be at least 2 portals. Use randomness for both the number and location of the portals
No two items (ship components, parts, portals) may be in the same location

OOP Design

Although the design is largely up to you this time, think carefully about how you will structure your program. We are going to progressively expect better design from you each project, and a portion of your grade will be based on this design. Here are a few things to consider

Portals, Parts, and ShipComponents all have certain things in common. How should you express that relationship?
Create a class that represents the current Room that you are in. Keep in mind that you will have to create many rooms in future parts of this project.
Create a class that represents a Rover

Think carefully about the relationships between these objects. This is the hard part of design! But if you do it right, it will make all your future parts go much smoother.

Grading breakdown

Graded item	Number of points
Room Setup
The rover and ship components and the parts all have working images	7 pts
The ship must have at least three different kinds of ship components and at least 6 ship components total	6 pts
Use randomness for the number of the parts	6 pts
Use randomness for the location of the parts	6 pts
The number of parts in a room should be roughly similar to image in instructions (the room shouldn't be completely covered in parts)	6 pts
There will be at least 2 portals. Again, use randomness for both the number and location of portals	6 pts
No two items (ship components, parts, portals) may be in the same location.	5 pts
The rover starts on a random location in the first room	4 pts
General Movement
The rover goes up	6 pts
The rover goes down	6 pts
The rover goes left	6 pts
The rover goes right	6 pts
Edge/Item Movement
Top Edge	4 pts
Bottom Edge	4 pts
Left Edge	4 pts
Right Edge	4 pts
The rover can stand on things (empty spaces, ship components, parts, and portals)	4 pts

Good design principles used	10 pts
Total	100 pts
