Learning Rule-Based Expert Systems Using Python ACT-R

Paired Programming (Group of 2) Optional

Due - 18-Sep-2019 11:55pm

Due by Google Classroom (see bottom for instructions)

• Rule-Based Expert Systems allow you to create intelligent systems using a series of If->Then style production rules

For this assignment, we are going to use the Python ACT-R Cognitive Architecture to build our Rule-Based Expert Systems

• Why ACT-R?

  • Though ACT-R has many components that can make it a very useful system for representing intelligent behavior (especially behavior that is human-like), we will be using it for it's central production system, which uses rules to define the behavior of it's central executive system (the "Production System" in Figure 1).

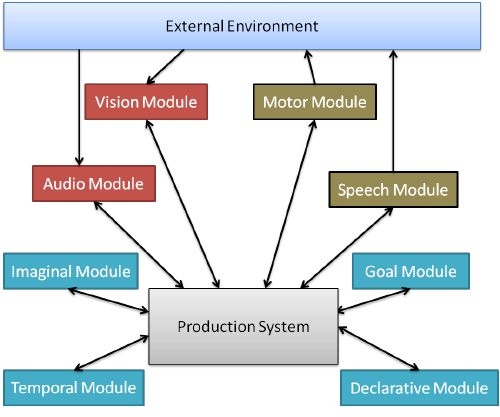

  Figure 1: A high-level view of ACT-R, from (Dancy et al., 2015)
  • We will use ACT-R as a way to give you an opportunity to use a full system to create rule-based agents and as a way to give you an experience with a well studied Cognitive Architecture
  • By using Python ACT-R (instead of the canonical LISP version) you also get to use ACT-R to create agents that is more like more designing a program. Canonical ACT-R actually now includes a way to connect to Python (and even create ACT-R agents using only Python), but this version works well enough for our purposes.

Setting up your environment

For this assignment, (and generally the assignments that involve a programming component) you will need Python 3
I recommend that you use a virtual environment (or something similar) if you aren't already - for example, https://docs.python.org/3.7/tutorial/venv.html
To setup a virtual environment, follow these steps below, otherwise you can skip to Getting Python ACT-R

1. On any platform (Mac/Linux/Windows)

Create a virtual environment called 379Env

username$ python3 -m venv 379Env

2a. On a Mac/Linux machine, in the terminal

Activate environment called 379Env

username$ source 379Env/bin/activate

2b. On a Windows machine, in cmd

Activate environment called malmoEnv

379Env\Scripts\activate.bat

(Do not do this until you want to not use your)

To deactivate any virtual environment you are in deactivate

You should see the name of your env next to your command line in the terminal/shell now, this is how you know that your virtual environment is activated

• For example it may look like this - (malmoEnv) computer:project user1234$


This will hopefully help keep you from having to diagnose odd issues that come from quickly installing and uninstalling different software over the years.

Getting Python ACT-R

For this we will use a custom version of Python ACT-R that acts more nicely with Python3 than the versions listed on the CCM Lab website

• Make sure you have your virtual environment activated
• Go to - https://gitlab.bucknell.edu/AI-CogSci-Group/Py3ACTR.git to download the code
• Once you have the code downloaded, navigate into the top directory of downloaded files via terminal and activate whatever virtual environment that you are using
• install Python ACT-R by running python setup.py install

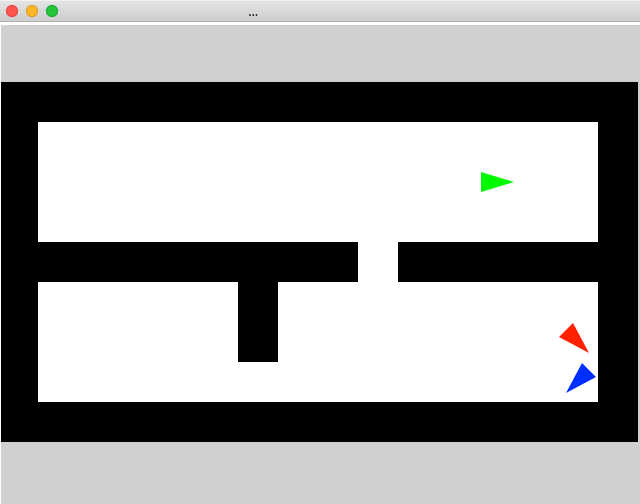

Ensure everything is working by navigating to tutorials/Grid World and running python 3_many_agents.py

If all works out, you should see a grid environment with agents moving around (similar to the figure below)

Your first Python ACT-R agent

Let's create our first Python ACT-R Agent

Create a new file called RBES1.py

The first thing you'll need in this file is the important statements to use the CCM/Python ACT-R library

# import ccm module library for Python ACT-R classes
import ccm
from ccm.lib.actr import *

Now let's create the actual agent

class SandwichBuilder(ACTR):
	goal = Buffer()
	sandwich = []

	def init():
		goal.set("build_sandwich 1 prep")

	def prep_ingredients(goal="build_sandwich 1 prep"):
		#start building our sandwich!
		goal.set("build_sandwich 2 bottom_bread")

	def place_bottom_bread(goal="build_sandwich 2 ?ingred"):
		#Place the bottom piece of bread
		sandwich.append(ingred):
		goal.set("build_sandwich 3 mayo")

	def place_mayo(goal="build_sandwich 3 ?ingred"):
		sandwich.append(ingred)
		goal.set("build_sandwich 4 turkey")

	def place_turkey(goal="build_sandwich 4 ?meat"):

	def place_cheese(goal="build_sandwich 5 ?cheese"):

	def forgot_mayo(goal="build_sandwich 6 top_bread"):

	def place_mayo_top(goal="build_sandwich 6 mayo"):

	def place_top_bread(goal="build_sandwich 7 top_bread"):
		self.stop

As a first try at creating your agent, try and finish the rules there so that the agent completes the sandwich
Be sure to include the code below, so that you have an empty environment to run the agent and a log that prints out

class EmptyEnvironment(ccm.Model):
	pass

env_name = EmptyEnvironment()
agent_name = SandwichBuilder()
env_name.agent = agent_name
ccm.log_everything(env_name)
env_name.run()

When you're finished, you may (should) have something similar to this in your terminal:

   0.000 agent.production_match_delay 0
   0.000 agent.production_threshold None
   0.000 agent.production_time 0.05
   0.000 agent.production_time_sd None
   0.000 agent.goal.chunk None
   0.000 agent.goal.chunk build_sandwich 1 prep
   0.000 agent.production prep_ingredients
   0.050 agent.production None
   0.050 agent.goal.chunk build_sandwich 2 bottom_bread
   0.050 agent.production place_bottom_bread
   0.100 agent.production None
   0.100 agent.goal.chunk build_sandwich 3 mayo
   0.100 agent.production place_mayo
   0.150 agent.production None
   0.150 agent.goal.chunk build_sandwich 4 turkey
   0.150 agent.production place_turkey
   0.200 agent.production None
   0.200 agent.goal.chunk build_sandwich 5 provolone
   0.200 agent.production place_cheese
   0.250 agent.production None
   0.250 agent.goal.chunk build_sandwich 6 mayo
   0.250 agent.production place_mayo_top
   0.300 agent.production None
   0.300 agent.goal.chunk build_sandwich 7 top_bread
   0.300 agent.production place_top_bread
   0.350 agent.production None
Sandwich complete!

A Python ACT-R Rule agent in a simple grid environment

We need to create a simple agent that can traverse the board as needed Now the more fun stuff. Let's create an agent to move around in a grid environment similar to the one you saw in a previous example

1st, create a new file called vacuumAgent.py

Below is a starter code for you to create a rule-based roomba-like agent

The idea is to implement the strategies reported to be used by some Roombas (broadly defined) to make your agent move around in the environment and clean dirty spots

These implementation details can be found a few places - https://www.cnet.com/news/appliance-science-how-robotic-vacuums-navigate/ - seems to describe it fairly well.

import ccm
log=ccm.log()

from ccm.lib import grid
from ccm.lib.actr import *

import random

mymap="""
################
#             C#
#     D        #
#              #
##            ##
#   DD         #
#        D    D#
#            DD#
################
"""


class MyCell(grid.Cell):
	dirty=False
	chargingsquare=False
	def color(self):
		if self.chargingsquare: return "green"
		elif self.dirty: return 'brown'
		elif self.wall: return 'black'
		else: return 'white'

	def load(self,char):
		if char=='#': self.wall=True
		elif char=='D': self.dirty=True
		elif char=='C': self.chargingsquare=True

class MotorModule(ccm.Model):
	FORWARD_TIME = .1
	TURN_TIME = 0.025
	CLEAN_TIME = 0.025

	def __init__(self):
		ccm.Model.__init__(self)
		self.busy=False

	def turn_left(self, amount=1):
		if self.busy: return
		self.busy=True
		self.action="turning left"
		yield MotorModule.TURN_TIME
		amount *= -1
		self.parent.body.turn(amount)
		self.busy=False

	def turn_right(self, amount=1):
		if self.busy: return
		self.busy=True
		self.action="turning left"
		yield MotorModule.TURN_TIME
		self.parent.body.turn(amount)
		self.busy=False

	def turn_around(self):
		if self.busy: return
		self.busy=True
		self.action="turning around"
		yield MotorModule.TURN_TIME
		self.parent.body.turn_around()
		self.busy=False

	def go_forward(self, dist=1):
		if self.busy: return
		self.busy=True
		self.action="going forward"
		for i in range(dist):
			yield MotorModule.FORWARD_TIME
			self.parent.body.go_forward()
		self.action=None
		self.busy=False

	def go_left(self,dist=1):
		if self.busy: return
		self.busy="True"
		self.action='turning left'
		yield MotorModule.TURN_TIME
		self.parent.body.turn_left()
		self.action="going forward"
		for i in range(dist):
			yield MotorModule.FORWARD_TIME
			self.parent.body.go_forward()
		self.action=None
		self.busy=False

	def go_right(self):
		if self.busy: return
		self.busy=True
		self.action='turning right'
		yield 0.1
		self.parent.body.turn_right()
		self.action='going forward'
		yield MotorModule.FORWARD_TIME
		self.parent.body.go_forward()
		self.action=None
		self.busy=False

	def go_towards(self,x,y):
		if self.busy: return
		self.busy=True
		self.clean_if_dirty()
		self.action='going towards %s %s'%(x,y)
		yield MotorModule.FORWARD_TIME
		self.parent.body.go_towards(x,y)
		self.action=None
		self.busy=False

	def clean_if_dirty(self):
		"Clean cell if dirty"
		if (self.parent.body.cell.dirty):
			self.action="cleaning cell"
			self.clean()

	def clean(self):
		yield MotorModule.CLEAN_TIME
		self.parent.body.cell.dirty=False



class ObstacleModule(ccm.ProductionSystem):
	production_time=0

	def init():
		self.ahead=body.ahead_cell.wall
		self.left=body.left90_cell.wall
		self.right=body.right90_cell.wall
		self.left45=body.left_cell.wall
		self.right45=body.right_cell.wall


	def check_ahead(self='ahead:False',body='ahead_cell.wall:True'):
		self.ahead=True

	def check_left(self='left:False',body='left90_cell.wall:True'):
		self.left=True

	def check_left45(self='left45:False',body='left_cell.wall:True'):
		self.left45=True

	def check_right(self='right:False',body='right90_cell.wall:True'):
		self.right=True

	def check_right45(self='right45:False',body='right_cell.wall:True'):
		self.right45=True

	def check_ahead2(self='ahead:True',body='ahead_cell.wall:False'):
		self.ahead=False

	def check_left2(self='left:True',body='left90_cell.wall:False'):
		self.left=False

	def check_left452(self='left45:True',body='left_cell.wall:False'):
		self.left45=False

	def check_right2(self='right:True',body='right90_cell.wall:False'):
		self.right=False

	def check_right452(self='right45:True',body='right_cell.wall:False'):
		self.right45=False

class CleanSensorModule(ccm.ProductionSystem):
	production_time = 0
	dirty=False

	def found_dirty(self="dirty:False", body="cell.dirty:True"):
		self.dirty=True

	def found_clean(self="dirty:True", body="cell.dirty:False"):
		self.dirty=False


class VacuumAgent(ACTR):
	goal = Buffer()
	body = grid.Body()
	motorInst = MotorModule()
	cleanSensor = CleanSensorModule()

	def init():
		goal.set("rsearch left 1 0 1")
		self.home = None

	#----ROOMBA----#

	def clean_cell(cleanSensor="dirty:True", motorInst="busy:False", utility=0.6):
		motorInst.clean()

	def forward_rsearch(goal="rsearch left ?dist ?num_turns ?curr_dist",
						motorInst="busy:False", body="ahead_cell.wall:False"):
		motorInst.go_forward()
		print(body.ahead_cell.wall)
		curr_dist = str(int(curr_dist) - 1)
		goal.set("rsearch left ?dist ?num_turns ?curr_dist")

	def left_rsearch(goal="rsearch left ?dist ?num_turns 0", motorInst="busy:False",
					utility=0.1):
		motorInst.turn_left(2)
		num_turns = str(int(num_turns) + 1)
		goal.set("rsearch left ?dist ?num_turns ?dist")



		###Other stuff!




world=grid.World(MyCell,map=mymap)
agent=VacuumAgent()
agent.home=()
world.add(agent,5,5,dir=0,color="black")

ccm.log_everything(agent)
ccm.display(world)
world.run()

Note that for the rules above, you are free to modify, they are included to provide an example possibility.

What's going on above?

---

For starters we define rules within a class that represents our agent. This class must have ACTR as its parent class.

For now don't worry about the code above it that inherits from other classes (e.g., the MotorModule) these are abstractions that allow us to interact with the architecture in a principled way. For you, just know that they are an interface that is available for some small interaction with the environment.

Also notice the init() function: this is how we can essentially initialize our agent w/in ACT-R. It basically operates like a constructor.

Within this function, we set our initial goal (what we initially have in short-term memory when the simulation begins) and can set the value of any slots, which are represented as class instance attributes.

The goal buffer is one of the things we will use for keeping track of our current context. It provides a representation of short-term memory. (You may recall that STM is an important component of rule-based expert systems in general...in ACT-R this idea applies as well)

class VacuumAgent(ACTR):
	goal = Buffer()
	body = grid.Body()
	motorInst = MotorModule()
	cleanSensor = CleanSensorModule()

	def init():
		goal.set("rsearch left 1 0 1")
		self.home = None

What about rules?

Rules are built within the class as functions (or methods if you prefer...but you'll notice in the snippet below that we don't really use a self as we would with a normal Python class method)

The argument list for a Rule (Function) provides the condition (LHS, if, etc.) and the body provides the action (RHS, then, etc.)

Within our argument list, we will generally specify the state of a buffer or module. It's not important to know much about these constructs, just that they are a way for us to encapsulate behavior and functionality in a separate entity.

	def clean_cell(cleanSensor="dirty:True", motorInst="busy:False", utility=0.6):
		motorInst.clean()

	def forward_rsearch(goal="rsearch left ?dist ?num_turns ?curr_dist",
						motorInst="busy:False", body="ahead_cell.wall:False"):
		motorInst.go_forward()
		curr_dist = str(int(curr_dist) - 1)
		goal.set("rsearch left ?dist ?num_turns ?curr_dist")

	def left_rsearch(goal="rsearch left ?dist ?num_turns 0", motorInst="busy:False",
					utility=0.1):
		motorInst.turn_left(2)
		num_turns = str(int(num_turns) + 1)
		goal.set("rsearch left ?dist ?num_turns ?dist")

Lets look at the forward_rsearch function a bit closer

	def forward_rsearch(goal="rsearch left ?dist ?num_turns ?curr_dist",
						motorInst="busy:False", body="ahead_cell.wall:False"):
		motorInst.go_forward()
		curr_dist = str(int(curr_dist) - 1)
		goal.set("rsearch left ?dist ?num_turns ?curr_dist")

For our condition, we are testing whether the buffer goal (again, a representation of short-term memory) has slot values of "rsearch" and "left" (these are just a way to keep track of our current strategy or goal).

Statements such as ?dist tell the pattern matcher that we want the production to fire if there is some value in that third slot, but that we don't particularly care what it is for the purposes of matching the condition. This also creates a python variable with the same name.
Notice that we also use these variables to adjust the goal state and we even are able to use these variables in our action:

curr_dist = str(int(curr_dist) - 1)

The python variable curr_dist in the action/RHS comes from ?curr_dist in the condition/LHS.

We also use an instantiation of the MotorModule (and its state) and attributes of the body representation to specify additional constraints for the selection of this rule by the central production system.

Note that ACT-R has other cool features/theory that we don't get into to keep things simple for this assignment. If you want to use a cognitive architecture for any of your projects, we can talk and I can guide you.

Using more aspects of ACT-R would give us access to both the symbolic (e.g., rules and facts) and the subsymbolic (utility and activation) memory representations. The subsymbolic systems implement forms of bayesian and reinforcement learning.

Instructions for submission

We're going to use Gitlab for our general work to make things easy for me to see progress. This also makes transition for your code to another repo (e.g., Github) fairly easy should you want to show-off Project work.
You will still submit final files on Google Classroom (this makes grading a bit more straight forward)

Create a new repo on Gitlab called CSCI379-FA19

• Make sure to give me access to the repo so that I can see your work!
  • Make sure to give me access to the repo so that I can see your work!
    • Make sure to give me access to the repo so that I can see your work!

Create your own folder for this assignment called PyACTR-RBES

• Follow the assignment creation steps for other assignments that involve programming as well unless otherwise specified
• By using Gitlab, I can also pull your code and try it out remotely if we run into an impasse and/or are dealing with a deadline

Grading

This assignment has some fairly straightforward grading We can think about this assignment as being out of 10 points

• 8 points: Have your agent do a swirl pattern strategy (like the Roomba alg we're trying to mimic) and OK documentation
  • Documentation here includes a README
• 2 points (some partial credit is implicit):
  • Good Documentation
  • Full implementation of the Roomba alg (implementing the wall tracing and straight random strategies mentioned in the linked article)
  • creativity (e.g., trying other algorithms that work in concert with the swirl strategy)

Document your code

Document your code

Document your code

Document your code

References
